100w 24v LED Power Supply
£29.99 Ex. VAT
Super slim IP67 waterproof LED drivers providing a constant voltage 24vdc regulated
output at up to 4.16A 100W.No minimum load. Can be used for any power rating up to
100W. SELV. Open circuit, short circuit,overload and auto recovery. Class II, lifetime
30,000hrs.
100w 240vac to 24vdc LED Power Supply – Fully encapsulated IP67
Output: 24vdc Constant Voltage
Input voltage: 220-240vac
Input frequency: 50/60Hz
Current: 4.16A
Power : 100w Watts
Protection: Short Circuit, Over voltage protection
Dimensions: 190mm × 52mm × 37mm
AC cord length: 150mm
DC cord length: 150mm
Operating temperature: -20°C to + 45°C
Run up to (our lamps):
83 x E14, E10 & Golf ball LED 24v Lamps
66 x LED PIXELS 24v
Related products
24w Plug in 24v LED Power Supply
24w 240vac to 24vdc LED Plug in Style Power Supply – 2.1mm Plug
Input voltage: 100-240vac (90-264vac max.)
Input frequency: 47 - 63Hz
Output voltage: 24vdc
Current: 1000mA (1 amp)
Power : 24 Watts
Protection: Short Circuit, Over voltage
Dimensions: 59 x 48 x 29mm
Cord length: 1.5 metres
DC connector: 2.1 x 5.5 x 12mm (Female)
Polarity: +ve (positive) centre
Leakage current: <0.25mA
Operating temperature: 0°C to + 40°C
Run up to (our lamps):
20 x E14, E10 & Golf ball LED 24v Lamps
16 x LED PIXELS 24v
65w Plug in 24v LED Power Supply
65w 240vac to 24vdc LED Plug in Style Power Supply – 2.1mm Plug
Input voltage: 100-240vac (90-264vac max.)
Input frequency: 47 - 63Hz
Output voltage: 24vdc
Current: 2.7A
Power : 65 Watts
Protection: Short Circuit, Over Current protection
Dimensions: 117 x 53 x 35mm
DC cord length: 1.5 metres
DC connector: 2.1 x 5.5 x 12mm (Female)
Operating temperature: 0°C to + 40°C

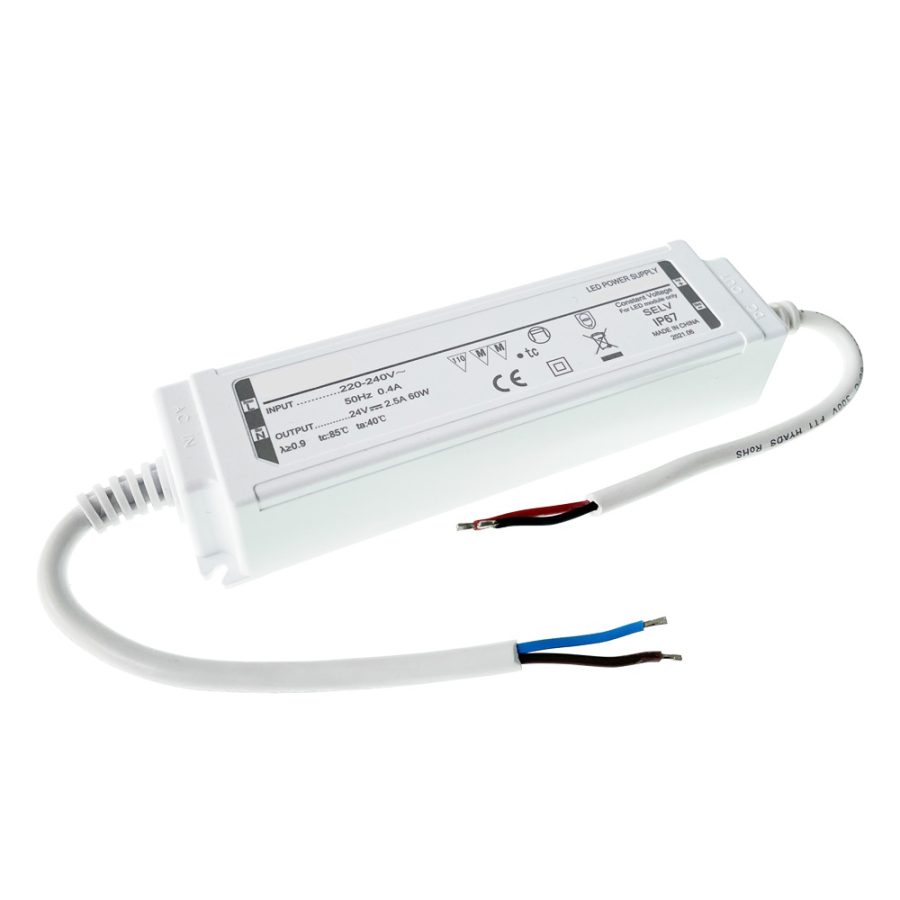

60w 24v LED Power Supply
Super slim IP67 waterproof LED drivers providing a constant voltage 24vdc regulated output
at up to 2.5A 60W. No minimum load. Can be used for any power rating up to 60W.
SELV. Open circuit, short circuit,overload and auto recovery. Class II, lifetime 30,000hrs.
60w 240vac to 24vdc LED Power Supply – Fully encapsulated IP67
Output: 24vdc Constant Voltage
Input voltage: 220-240vac
Input frequency: 50/60Hz
Current: 2.5A
Power : 60 Watts
Protection: Short Circuit, Over voltage protection
Dimensions: 163mm × 43mm × 33mm
AC cord length: 200mm
DC cord length: 200mm
Operating temperature: -20°C to + 45°C
Run up to (our lamps):
50 x E14, E10 & Golf ball LED 24v Lamps
40 x LED PIXELS 24v
2000w / 2000VA – 24v AC Power Supply
2000w / 2000VA - 24v AC Power Supply
These are perfect to be used with our 24vac flasher / chaser boxes found HERE
Low voltage lighting transformers are double wound isolating types, enclosed and encapsulated in black corrosion resistant GRP IP55 cases, with Metal Galvanized and painted back plates for wall, floor or pole mounting.
20mm gland in and 20mm gland out.
Output: 24vac
Input voltage: 230/240v
Power : 2000 Watts
Protection: S/POLE MCB
Dimensions: 169mm x 169mm x 205mm
Please note that the back plates will protrude 25mm either side of the case.
200w 24v LED Power Supply
200w 240vac to 24vdc LED Power Supply – Fully encapsulated IP67
Output: 24vdc Constant Voltage
Input voltage: 100-305vac
Input frequency: 47 - 63Hz
Current: 8.3A
Power : 200 Watts
Protection: Short Circuit, Over Temperature, Over voltage protection
Dimensions: 199 x 63 x 35.5mm
Weight: 850g
AC cord length: 300mm
DC cord length: 300mm
Operating temperature: -40°C to + 90°C
Run up to (our lamps):
166 x E14, E10 & Golf ball LED 24v Lamps
133 x LED PIXELS 24v
12v & 24v Rotary Dimmer – 30A
Installs between a 24vdc power supply and 24vdc lights
- Input voltage: DC 12V / 24V
- Output voltage: Same as input voltage
- Output power: 30A (Max. 360W at 12vdc / Max 720W at 24vdc)
- Output Signal PWM
- Simply turn dial to adjust brightness of LED light
- No battery required
- A constant voltage power supply will be needed to provide
the 12vdc or 24vdc input. The output voltage supplied by this
unit will be the same as the input voltage so make sure the
correct PSU is selected for your LEDs
- Dimensions: 86 x 63 x 35mm
Specification PDF available on request.
